The vacuum tempering furnace is an essential piece of equipment for precision heat treatment, designed specifically for vacuum tempering of tool steel, die steel, high-speed steel, ultra-high-strength steel, and titanium alloy after vacuum quenching or solution treatment. It also excels at recrystallization annealing and vacuum aging of non-ferrous metals, making this product a versatile asset for industries demanding top-tier material performance. What sets this product apart is its ability to deliver bright, unaltered workpieces post-treatment, thanks to its high-vacuum tempering process that preserves material integrity and surface quality.

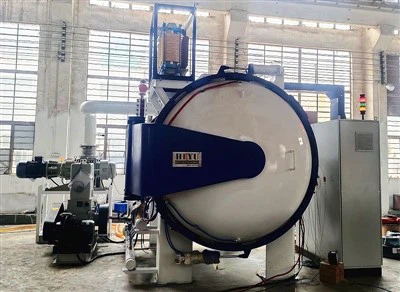

Featuring a horizontal, single-chamber, horizontal loading structure, the vacuum tempering furnace offers customizable furnace door opening methods to match user needs. Its furnace chamber combines wide nickel-chromium alloy heating strips with multi-layer stainless steel screens, ensuring exceptional temperature uniformity-critical for consistent results across every batch. Equipped with a built-in heat exchanger and air-cooled circulation rapid cooling function, it effectively eliminates temper brittleness in parts, while the convection heating device guarantees uniform temperature even at low operating ranges. With optional SUS304 or 310S inner heat shields and automotive-grade paint that resists discoloration for 3 years, this furnace blends durability with long-lasting performance.
All parameters can be adjusted according to process requirements and are not for acceptance purposes. The final technical solution and agreement shall prevail. Invest in the product to enhance the toughness, strength, and stability of your heat-treated components-ideal for aerospace, automotive, and precision manufacturing industries. With its reliable performance, customizable design, and long-term durability, this vacuum tempering furnace is the smart choice for elevating your post-quench heat treatment processes and achieving consistent, high-quality results.
|
Parameter/Model |
HYT-533 |
HYT -644 |
HYT -755 |
HYT -966 |
HYT -1177 |
HYT -1288 |
HYT -1599 |
|
Effective Heating Zone W×H×L(mm) |
300×300×500 |
400×400×600 |
500×500×700 |
600×600×900 |
700×700×1100 |
800×800×1200 |
900×900×1500 |
|
Loading Capacity(Kg) |
75 |
250 |
400 |
600 |
1000 |
1200 |
1500 |
|
Heating Power(Kw) |
45 |
60 |
90 |
120 |
150 |
180 |
240 |
|
Maximum Temperature(℃) |
750 |
750 |
750 |
750 |
750 |
750 |
750 |
|
emperature Uniformity(℃) |
±5 |
±5 |
±5 |
±5 |
±5 |
±5 |
±5 |
|
Vacuum Level(Pa) |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
4×10-3/6×10-4 |
|
Pressure Rise Rate(Pa/h) |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
≤0.26 |
|
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
≤0.67 |
|
|
Gas Cooling Pressure(bar) |
2 |
2 |
2 |
2 |
2 |
2 |
2 |
