As a supplier of Mesh Belt Tempering Furnaces, I understand the importance of having a well - functioning control system. A modern and efficient control system can significantly enhance the performance, reliability, and productivity of your furnace. In this blog, I will share some insights on how to upgrade the control system of a Mesh Belt Tempering Furnace.
1. Assess the Current Control System
The first step in upgrading the control system is to conduct a thorough assessment of the existing one. Evaluate its age, functionality, and compatibility with the latest technologies. Check for any recurring issues such as inaccurate temperature control, inconsistent belt speed, or problems with the safety interlocks.
Look at the type of control components used, like programmable logic controllers (PLCs), temperature sensors, and actuators. Older systems may use outdated PLC models that lack the processing power and flexibility required for advanced control strategies. Temperature sensors, if they are old, may have drifted over time, leading to inaccurate temperature readings.
Collect data on the furnace's performance over a period of time. This data can include temperature profiles, belt speed variations, and energy consumption. Analyzing this data will help you identify areas where the control system can be improved.
2. Define the Upgrading Goals
Based on the assessment, clearly define your upgrading goals. Common goals may include improving temperature accuracy, reducing energy consumption, enhancing process automation, and increasing the overall reliability of the furnace.
If your industry requires strict compliance with certain quality standards, such as ISO certifications, your goal may be to upgrade the control system to meet these requirements. For example, more precise temperature control can ensure that the tempered products meet the specified hardness and microstructure requirements.
If you are looking to increase production capacity, the control system upgrade may focus on optimizing the belt speed and reducing the cycle time. You may also want to improve the user interface to make it easier for operators to monitor and control the furnace.
3. Choose the Right Control Technology
There are several control technologies available for upgrading the Mesh Belt Tempering Furnace control system.
Programmable Logic Controllers (PLCs)
Modern PLCs offer high - performance processing capabilities, large memory, and extensive communication options. They can handle complex control algorithms, such as PID (Proportional - Integral - Derivative) control for temperature regulation. When choosing a PLC, consider factors like the number of input/output (I/O) points required, the processing speed, and the programming language support. Some advanced PLCs also support remote monitoring and troubleshooting, which can be very useful for maintenance.
Human - Machine Interfaces (HMIs)
An HMI is an essential component for operators to interact with the control system. Upgrade to a touch - screen HMI that provides a user - friendly interface. The HMI should display real - time data such as temperature, belt speed, and alarm status. It should also allow operators to set parameters, start and stop the furnace, and view historical data. Some HMIs can be integrated with mobile devices, enabling remote monitoring and control.
Sensors and Actuators
Invest in high - quality temperature sensors, such as thermocouples or resistance temperature detectors (RTDs), with better accuracy and stability. For belt speed control, use reliable speed sensors and actuators. Newer actuators offer faster response times and more precise control, which can improve the overall performance of the furnace.
4. Implement Advanced Control Strategies
Model - Based Control
Model - based control strategies use mathematical models of the furnace to predict its behavior and adjust the control parameters accordingly. This can lead to more precise temperature control and reduced energy consumption. For example, a thermal model of the furnace can be developed to estimate the heat transfer rates and predict the temperature distribution inside the furnace. Based on this model, the control system can adjust the heating elements' power output to maintain the desired temperature profile.
Adaptive Control
Adaptive control algorithms can automatically adjust the control parameters in response to changes in the furnace's operating conditions. For instance, if the load on the belt changes, the adaptive control system can adjust the belt speed and heating power to ensure consistent product quality. This type of control is particularly useful in applications where the process conditions are variable.
5. Ensure Compatibility and Integration
When upgrading the control system, it is crucial to ensure compatibility with the existing furnace hardware. The new control components should be able to interface seamlessly with the heating elements, belt drive system, and other mechanical parts of the furnace.
If you are integrating the new control system with other industrial systems, such as a manufacturing execution system (MES), make sure that the communication protocols are compatible. This will enable data sharing and coordination between different systems, improving the overall efficiency of the production process.
6. Training and Documentation
Once the control system upgrade is complete, provide comprehensive training to the furnace operators. They should be familiar with the new HMI, how to set parameters, and how to respond to alarms. Training can be conducted through on - site sessions, online tutorials, or a combination of both.
Document all the changes made during the upgrade process, including the new control system configuration, wiring diagrams, and programming code. This documentation will be valuable for future maintenance and troubleshooting.
7. Consider Related Furnace Types

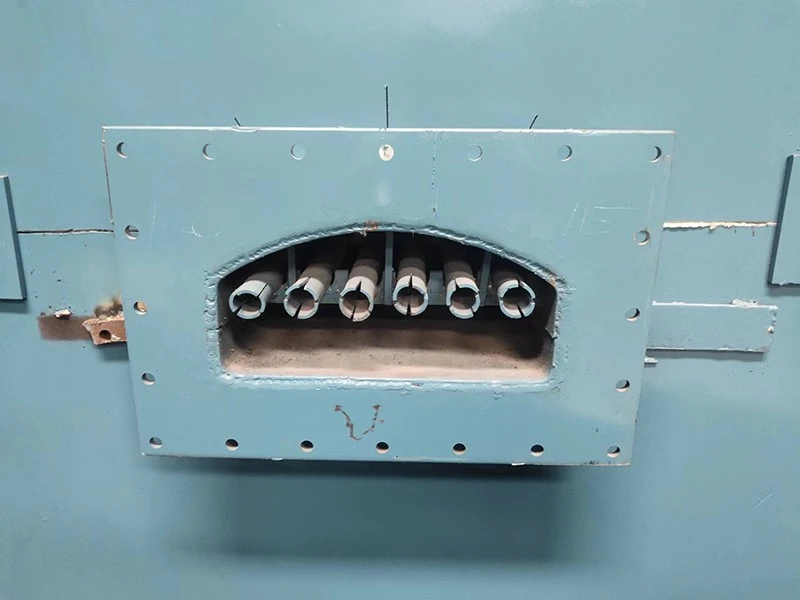

If you are in the market for other types of industrial furnaces, you may be interested in our Pit Type Annealing Furnace, Medium Temperature Bogie Hearth Furnace, and Metal Foundry Furnace. These furnaces also benefit from modern control system upgrades to improve their performance and efficiency.
Upgrading the control system of a Mesh Belt Tempering Furnace is a significant investment, but it can bring long - term benefits in terms of improved product quality, increased productivity, and reduced operating costs. If you are considering a control system upgrade for your Mesh Belt Tempering Furnace or are interested in our other industrial furnace products, we encourage you to contact us for a detailed discussion and procurement. Our team of experts can provide customized solutions based on your specific requirements.
